ZKDC Paper Cup Blanks Die Cutting Machine

Automatic Paper Cup Blanks Die Cutting


Automatic High Speed Paper Cup Die Cutting Machine

ZKDC is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, and pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.

Paper Cup Die Cutting Machine

1.The working speed is 150-200times per minute. It has the ability to die-cutting, creasing and embossing for various shapes.

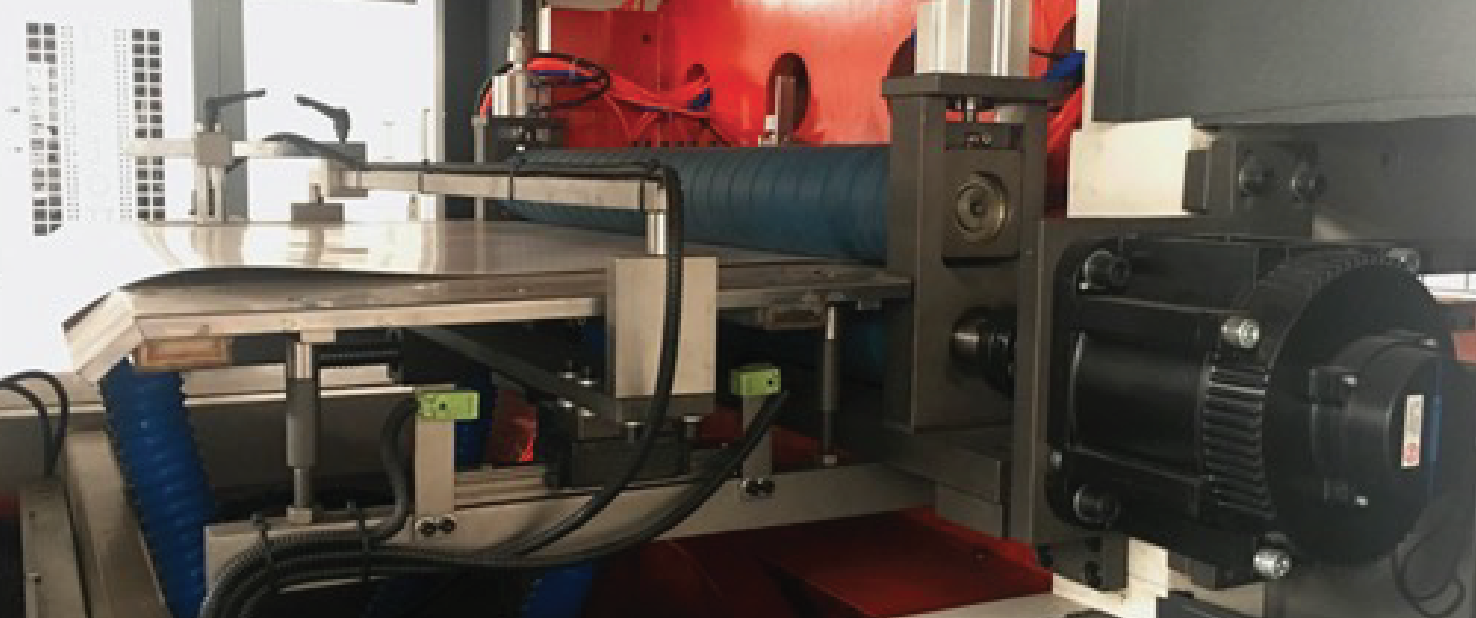

2. Paper conveyed by servo motor to ensures steady and accurate conveying. photoelectricity sensor checks the color code of printing to ensure fix the paper position accurately.

3. Electric control system uses PLC and HMI. Equipped with safety refinements to make acoustic - optical alarming and auto stop when some faults.

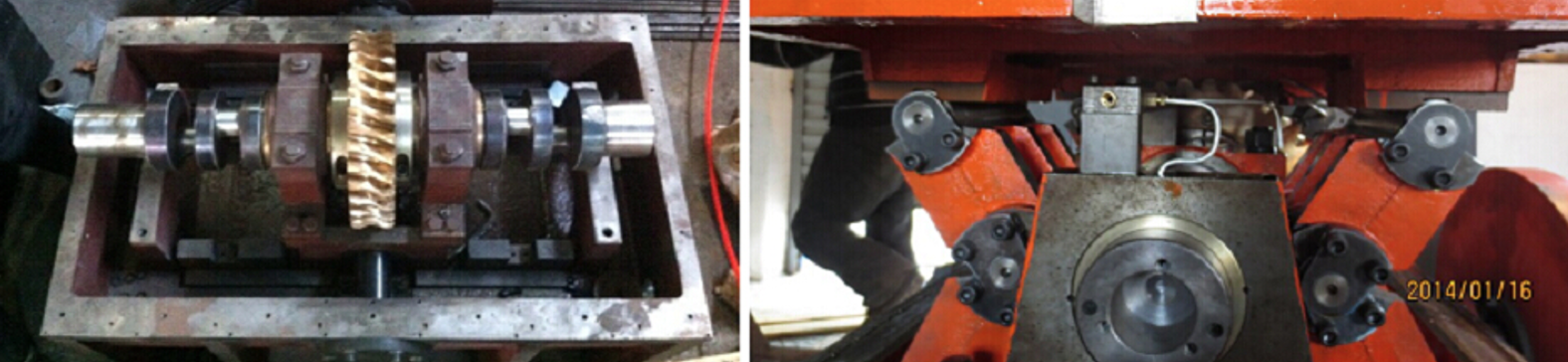

4. Worm wheel and worm transmission system ensures the powerful and steady pressure;It is very convenient and accurate to adjust pressure through HMI.

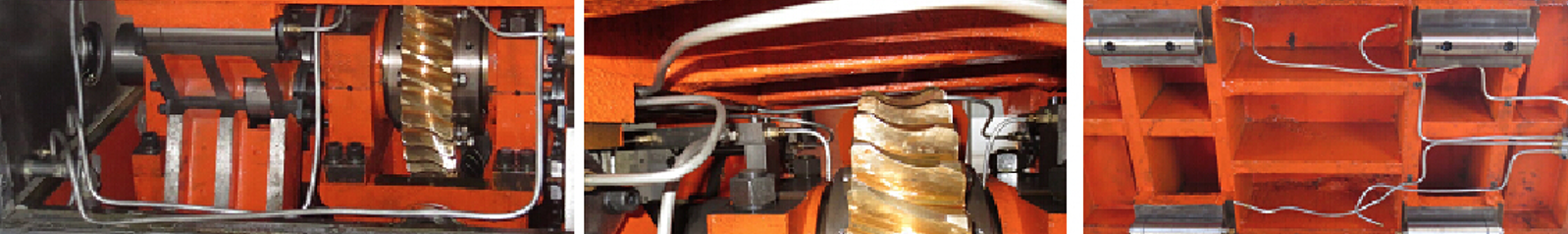

5.Lubricating with oil circulation and alarming when lack of oil to ensure smooth running and prolong the machine life.

6. The die-cutting frame uses pneumatic locking system to convenient operation. Die-cutting down steel board from Japon is accurate and lasts forever.

7.It adapts electric control pneumatic clutch to protect the machine when start and emergency stop..The flywheel provides a mounting location to the clutch and also can increase the pressure.

Paper Convey Width 950mm-400mm
Max. Roll Paper Diameter 1800mm
Cut Precision +-0,10mm
Production Capacity 180-210 times/min
Max. Cutting Size(mm) 950 x 540
Suitable Material 100-800g/m2 white cardboard, PE coated paper, kraft paper, etc...
Maximum Pressure 350T
Power 14,5KW
Total Weight 6,3T
Overall Dimension(mm) 4200 x 2100 x 1850
Working Air Source Air Pressure: 0,6 Mpa
Working Air: 0,3m3/min

* Other size can be customized.
