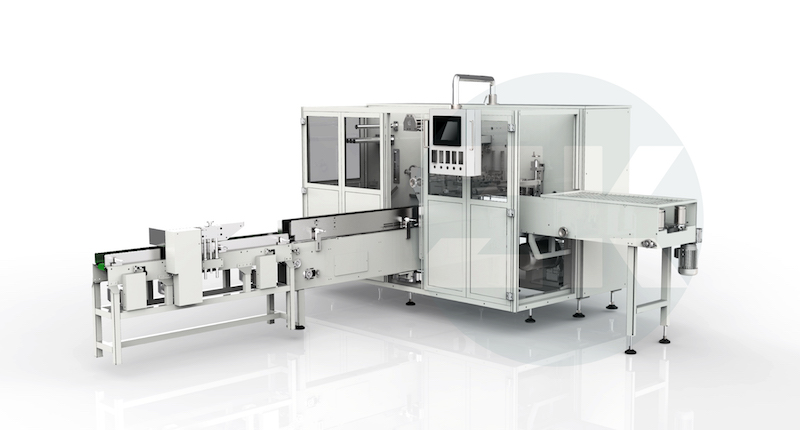

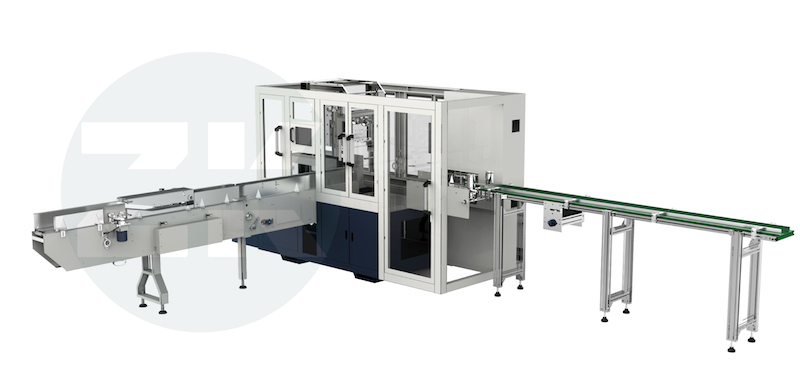

ZM-PP11 Fully Servo Automatic Napkin Packing Machine

Napkin Packing Machine

ZM-PP11

Fully Servo Automatic Napkin Packing Machine

1. The machine is applied with the packing type of wrapping, folding and sealing. It has the character of a tight structure, beautiful package and sealing.
2. The machine is controlled by a touch screen and the integrated controller. It has clear human machine interface and is easy for maintenance.
3. The Napkin Packing Machine is applied with automatic material managing tailstock to connect with the automatic production line in order to save the labor cost.
4. The photoelectric eye can automatically detect the film to make sure it will not move without a tissue in order to save the packing film.
5. It has a high degree of automation, a high production efficiency and a low fault rate.
6. The packing machine has a wide packaging range; different specifications can be changed rapidly.
7. There are pneumatic and rolling cut types for tearing mechanism and two kinds of a control system (stepper motor and servo motor) for choosing.
8. It is easy to apply perforation on the bags according to the user specifications.


Automatic Napkin Packing Machine

Paper Napkin Packing Machine

High Speed Napkin Packing Machine

High Speed Auto Napkin Packing Machine

Automatic V Fold Packing Machine

Facial Tissue Auto Packing Machine

Servo Full Automatic Napkin Packing Machine
Napkin Packing Machine Automatic Napkin Packing Machine


Model

ZM-PP11 Napkin Packing Machine

ZM-PP11-A Napkin Packing Machine

ZM-PP11-1 Napkin Packing Machine

Bagging Size Range

Length 100~230mm
Width 100~150mm
Height 30~100mm

Length 100~230mm
Width 100~150mm
Height 30~100mm

Length 150~230mm
Width 150~200mm
Height 50~100mm

Packing Speed

25~55 bags/min

25~65 bags/min

25~45 bags/min

Air

0,5 ~ 0,8 MPa

0,5 ~ 0,8 MPa

0,5 ~ 0,8 MPa

Machine Weight

3300 kg

3500 kg

3300 kg

Machine Dimensions (mm)

3560x5885x1925

3680x5885x1925

3560x5885x1925

Heating Power (Kw)

3,6 kw

3,6 kw

3,6 kw

Motor Power

3,66kw

5,4kw

3,66kw

Max. Packing Dimensions (mm)

230x150x100

230x150x100

230x190x100

Working Noise

≤78db

≤78db

≤78db

Packing Materials

CPP,PE,OPP/CPP, PT/PE,KOP/CPP, etc.

CPP,PE,OPP/CPP, PT/PE,KOP/CPP, etc.

CPP,PE,OPP/CPP, PT/PE,KOP/CPP, etc.

Power Supply

380V 50Hz

380V 50Hz

380V 50Hz
